Socket Welded Globe Valve, ASME B16.34, BS 5352, Forged, 1/2-4 Inch
Key Specifications / Features
Hits: 7
China Socket Weld Globe Valve Maker Produces Socket Weld End Globe Valve, ASME B16.34, BS 5352, Forging Molding, Class 150-1500, Temp Rating Up to 500℃.
Tags
Detail Information
Type: Socket Weld End Globe Valve.
Material: ASTM A105, etc.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: Class 150 LB - 1500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.

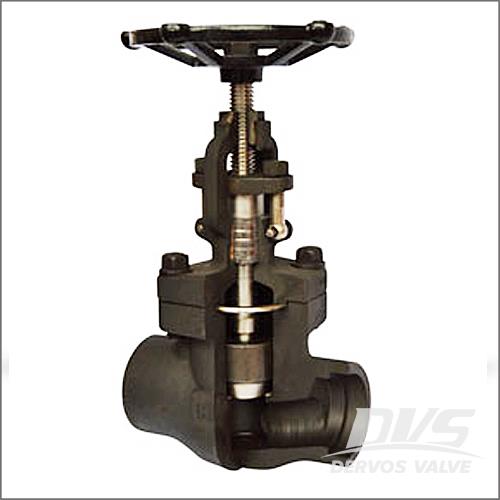

FORGED STEEL GLOBE VALVE - Outside Screw & Yoke, Bolted Bonnet.
STANDARD MATERIALS:
Design and Manufacture Conform to: API 602, BS 5352, ASME B16.34 / B16.11 / B1.20.1 / B16.25.
Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded.
★ Outside Screw & Yoke, Bolted Bonnet.
★ Reduce Bore / Full Bore.
★ Non-Rising Stem / Rising Handwheel.
Material: ASTM A105, etc.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: Class 150 LB - 1500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
FORGED STEEL GLOBE VALVE - Outside Screw & Yoke, Bolted Bonnet.
STANDARD MATERIALS:
 | PART NAMES | MATERIALS |
| BODY | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. | |
| BONNET | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. | |
| SEAT | ASTM A105 + HF | |
| DISC | ASTM A276 420 | |
| STEM | ASTM A276 410 | |
| GASKET | 304 + GRAPHITE | |
| HANDWHEEL | ASTM A197 | |
| PACKING | GRAPHITE | |
| GLAND | ASTM A276 410 |
 | PRESSURE TEST ( A105 ) | ||||
| CLASS | SHELL (psig) | BACKSEAT(psig) | SEAT(psig) | ||
| WATER | WATER | AIR | WATER | ||
| 150LB | 450 | 325 | - | 325 | |
| 300LB | 1125 | 825 | 825 | ||
| 600LB | 2225 | 1650 | 1650 | ||
| 800LB | 2975 | 2175 | 2175 | ||
| 900LB | 3350 | 2450 | 2450 | ||
| 1500LB | 5575 | 4100 | 4100 | ||
Design and Manufacture Conform to: API 602, BS 5352, ASME B16.34 / B16.11 / B1.20.1 / B16.25.
Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded.
★ Outside Screw & Yoke, Bolted Bonnet.
★ Reduce Bore / Full Bore.
★ Non-Rising Stem / Rising Handwheel.
