Forged steel check valves play a crucial role in modern piping systems, ensuring the one-way flow of fluids and preventing backflow that can cause significant damage to equipment and piping infrastructure. Often referred to as one-way valves, non-return valves, reflux valves, or back pressure valves, these automatic valves are essential for maintaining the efficiency and safety of various industrial processes.
What Are Forged Steel Check Valves?
Forged steel check valves are automatic valves designed to open and close based on the flow of the medium within the pipeline. Unlike manually operated valves, they do not require human intervention or external control systems. Instead, they rely entirely on the pressure and flow of the fluid to operate. When the fluid moves in the desired direction, the valve flap or disc opens, allowing free passage. Conversely, when the fluid attempts to reverse its direction, the flap automatically closes, preventing backflow.
These valves are widely used in applications where the reverse flow of fluid could harm the system or equipment, such as in pumping systems, chemical processing, power generation, and more. Additionally, they serve a vital function in preventing the backward rotation of pumps and drive motors and safeguarding against pressure surges that could damage the system.
Types of Forged Steel Check Valves
Forged steel check valves can be broadly categorized into two main types: swing type check valves and lift type check valves. Each type has its own unique design and application characteristics.
1. Swing Type Check Valve
The swing type check valve features a hinged flap that swings open and closed in response to fluid flow. It rotates around a pivot point, usually located at the top of the valve body. When fluid moves in the desired direction, the flap swings open, allowing passage. In the event of reverse flow, gravity and back pressure push the flap back against the valve seat, closing it securely.
Advantages:
Low resistance to fluid flow
Suitable for horizontal installations
Ideal for applications where flow needs to be maintained with minimal resistance

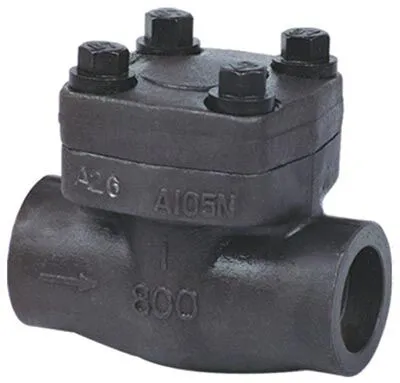

2. Lift Type Check Valve
The lift type check valve operates with a movable disc that lifts off the valve seat when fluid pressure is applied in the forward direction. The disc moves vertically within a guide, allowing the fluid to pass through. When the flow reverses, gravity and back pressure push the disc down, sealing the valve.
Advantages:
Suitable for high-pressure applications
Typically used in vertical pipelines
Reliable sealing performance
Working Characteristics of Forged Steel Check Valves
The working characteristics of forged steel check valves are influenced by factors such as fluid velocity, pressure changes, and transient flow conditions. The primary purpose of these valves is to prevent the reverse flow of the medium, protect pumps and drive motors from reversing, and maintain stable discharge from containers.
One notable feature of forged steel check valves is their ability to adapt to changing pressure conditions within a system. In auxiliary systems where pressure can exceed the main system pressure, check valves ensure that excess pressure does not cause reverse flow or compromise system integrity.
Load and Movement Characteristics
Forged steel check valves are typically exposed to varying loads and flow rates. Although their opening and closing frequency is relatively low, they must be highly reliable and capable of instant movement when required. Once opened or closed, the valve often remains in that position for an extended period. However, when movement is necessary, the transition must be smooth and efficient.
Due to the nature of their operation, forged steel check valves experience minimal wear on moving parts. This reliability makes them ideal for applications where long service life and minimal maintenance are essential.
Water Hammer Phenomenon
One of the most significant challenges associated with forged steel check valves is the risk of water hammer, a phenomenon that occurs when a valve closes rapidly and causes a pressure surge. This surge generates a shockwave that travels through the pipeline, potentially causing severe damage.
Water hammer typically occurs in high-pressure piping systems where multiple pumps operate in parallel. When the check valve closes suddenly, the rapid deceleration of the fluid generates a surge in pressure that can rupture pipes or damage sensitive equipment.
Causes of Water Hammer
The primary causes of water hammer are:
Fluid Incompressibility: Liquids do not compress easily, so when their flow suddenly stops, the kinetic energy converts into a pressure surge.
Motion Inertia: The rapid change in flow direction results in momentum shifts that intensify pressure.
Pipe Elasticity: The elastic nature of pipelines may amplify the shockwave, causing them to vibrate or deform.
Minimizing Water Hammer
To mitigate water hammer effects, valve manufacturers have introduced advanced designs and materials that enhance performance and reduce the impact of pressure surges. Some of these improvements include:
Damping Mechanisms: Integrating features that slow the valve closure to reduce shock intensity.
Rubber Seat Linings: These can absorb some of the kinetic energy and minimize noise and vibration.
Improved Valve Geometry: Streamlined internal structures can reduce turbulence and pressure fluctuations.
Advantages of Forged Steel Check Valves
Forged steel check valves are highly regarded for their robust construction and exceptional performance under harsh conditions. They offer several advantages, including:
1. High Strength and Durability
The forging process enhances the valve’s structural integrity, making it resistant to high pressure and temperature fluctuations.
2. Excellent Corrosion Resistance
Forged steel valves, often made from alloyed materials, withstand corrosive media, ensuring long-term reliability.
3. Minimal Maintenance
The simple and automatic operation of these valves minimizes the need for maintenance, reducing operational costs.
4. Versatile Applications
Suitable for a wide range of industries, including petrochemical, oil and gas, power generation, and water treatment.
Applications of Forged Steel Check Valves
Forged steel check valves are widely utilized in systems that require protection against reverse flow. Some typical applications include:
1. Pumping Systems
Preventing reverse flow that could damage pumps and cause motor reversal.
2. Chemical Processing
Ensuring unidirectional flow of aggressive or corrosive chemicals.
3. Steam Systems
Used to maintain one-way flow in high-temperature and high-pressure environments.
4. Oil and Gas Pipelines
Preventing backflow of crude oil or natural gas, which could compromise system safety.
Innovations in Forged Steel Check Valve Design
Valve manufacturers are constantly innovating to enhance the performance of forged steel check valves. Some recent advancements include:
1. Low-Pressure Drop Designs
Minimizing resistance to fluid flow, enhancing energy efficiency.
2. Advanced Sealing Mechanisms
Using soft seats or elastomeric materials to achieve a bubble-tight seal, even under fluctuating pressures.
3. Anti-Slam Features
Designed to reduce water hammer by slowing the valve's closing speed, preventing abrupt pressure spikes.
4. Smart Monitoring Integration
Some modern check valves incorporate sensors to monitor flow rates and pressure changes in real-time, alerting operators to potential issues.
Conclusion
Forged steel check valves play a vital role in maintaining the safe and efficient operation of piping systems across a wide range of industries. By automatically preventing reverse flow, they protect equipment, maintain system stability, and reduce the risk of pressure surges that can lead to catastrophic failures.
With continued advancements in valve design and materials, forged steel check valves are becoming more resilient and capable of withstanding increasingly demanding applications. By understanding their working principles, operational characteristics, and potential challenges, industries can make informed decisions when selecting the right check valve for their specific needs.
