Introduction

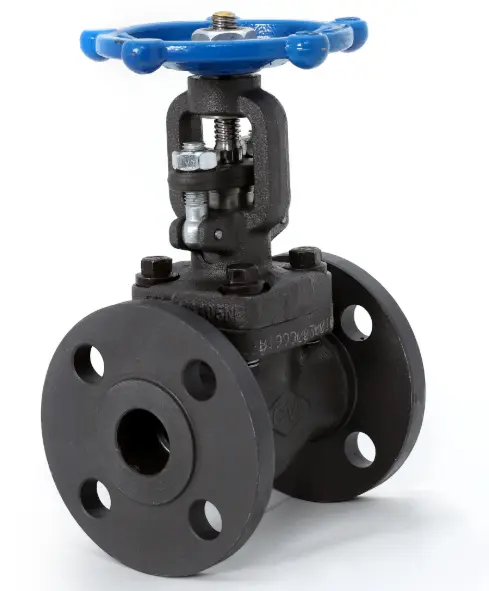

Forged steel gate valves are essential components in various industries, known for their robust construction and reliable performance. These valves are made from solid blocks of steel that are subjected to heat and pressure to form a dense, non-porous material. Unlike cast or welded steel valves, the forging process ensures superior strength, making forged steel valves ideal for high-pressure and high-temperature applications.
The core feature of a forged steel gate valve is its gate. This gate is typically a rectangular or wedge-shaped disk that slides into the valve body to control the flow. When the valve is open, the gate retracts fully into the valve’s walls via a stem and handwheel, creating an unobstructed passage. The gate’s design allows for a tight, bubble-free seal when the valve is closed, even under high-pressure conditions. This ensures a secure shutoff, preventing any leakage.
Key Components of a Forged Steel Gate Valve
Forged steel gate valves feature different connection designs for the valve body and bonnet, each offering unique benefits for specific applications. These connection types are crucial for determining how the valve performs in terms of durability, ease of maintenance, and sealing efficiency.
Welded Body-Bonnet Connection
This design involves a fully welded seal between the valve body and the bonnet. The primary advantage of this design is that it ensures there are no external leaks, providing a highly secure and sealed valve structure. This type of connection is ideal for high-performance applications where leakage must be absolutely prevented.

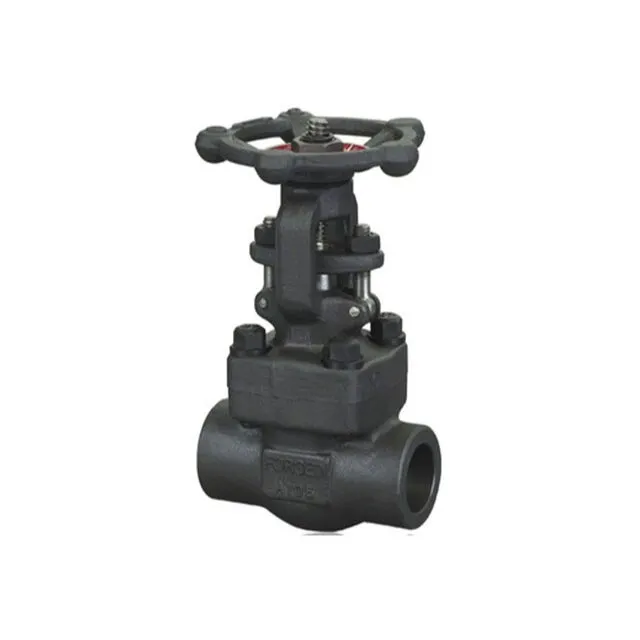

Bolted Body-Bonnet Connection
In this design, the valve body and bonnet are connected using bolts, with the seal achieved through wound gaskets. The key benefit here is ease of maintenance, as the bolted connection allows for easier disassembly and reassembly of the valve during servicing. This is a popular design choice for applications that require frequent inspection and maintenance.
Pressure Self-Tightening Bonnet
This innovative design uses screws to connect the valve body and bonnet, with the internal pressure contributing to the sealing effect. The greater the internal pressure, the tighter the seal becomes, which enhances the valve’s sealing performance under high-pressure conditions. This feature makes it particularly useful for applications where pressure fluctuations are expected.
Applications of Forged Steel Gate Valves
Forged steel gate valves are highly versatile and perform exceptionally well across a range of industries and applications. Their durable construction and superior sealing capabilities make them ideal for controlling flow in challenging environments, including those that involve high pressures and temperatures.
Steam Lines
Forged steel gate valves are highly effective in steam lines, where they can handle temperatures up to 850°F. The material’s ability to withstand high temperatures ensures reliable performance even in demanding conditions.
High-Pressure Systems
These valves are well-suited for high-pressure systems, with pressure ratings ranging from 500 psi to over 2500 psi. Their strength and durability allow them to effectively manage extreme pressures without compromising on performance.
Chemical and Petrochemical Plants
In the chemical and petrochemical industries, forged steel gate valves are essential due to their resistance to corrosion and wear. Their durability ensures long-term reliability in systems where exposure to harsh chemicals is common.
Waterworks
Forged steel gate valves are also used in waterworks, as they can handle both cold water and superheated water up to 400°F. The material’s resistance to corrosion and erosion ensures a long lifespan in water distribution systems.
Hydroelectric Plants
In hydroelectric plants, forged steel gate valves regulate high flow rates and pressure differentials. Their ability to manage large volumes of water under varying pressure conditions makes them indispensable in these applications.
District Heating Systems
Forged steel gate valves are frequently used in district heating systems, where they help route pressurized hot water and steam. These valves are crucial for maintaining the efficiency of heating networks in large residential and commercial buildings.
Nuclear Power
In nuclear power plants, forged steel gate valves meet stringent safety and quality standards. Their reliability in high-pressure, high-temperature environments ensures the safe operation of critical systems.
Oil and Gas Pipelines
Forged steel gate valves play a vital role in oil and gas pipelines, where they are used to isolate sections of the pipeline for maintenance. Their strength and tight shutoff capabilities are essential for maintaining the integrity of the pipeline system.
Installation and Usage Guidelines for Forged Steel Gate Valves
Proper installation and maintenance of forged steel gate valves are crucial for ensuring optimal performance and extending the lifespan of the valve. Below are some important instructions for installing and using these valves:
Valve Orientation
For manual valves installed on insulated pipelines, ensure that the valve handle is not positioned downward. This prevents any potential issues with handling and ensures ease of operation.
Alignment with Design Specifications
The installation location, height, and direction of the valve’s inlet and outlet should comply with the design specifications. Proper alignment ensures that the valve functions as intended and minimizes the risk of leaks or other performance issues.
Appearance Inspection
Before installation, conduct a thorough inspection of the valve’s appearance. The valve should comply with national standards, and the nameplate must contain all relevant information, including the valve’s specifications and certifications.
Maintenance Considerations
Regular maintenance is essential for ensuring the longevity and proper functioning of forged steel gate valves. Routine inspections and servicing should be performed to identify and address any wear or damage that may occur over time.
Material Selection for Forged Steel Gate Valves
The materials used in the construction of forged steel gate valves play a significant role in their performance. These valves are typically made from carbon steel, stainless steel, or alloy steel, depending on the specific requirements of the application.
Carbon Steel
Carbon steel is the most commonly used material for forged steel gate valves due to its excellent strength and durability. It is well-suited for general industrial applications where high performance and reliability are required.
Stainless Steel
For applications where corrosion resistance is critical, stainless steel is often chosen for forged steel gate valves. The material's resistance to corrosion makes it ideal for use in chemical processing, food and beverage, and pharmaceutical industries.
Alloy Steel
Alloy steel is used for applications that involve high temperatures and pressures. It offers superior strength and resistance to thermal degradation, making it the preferred material for valves in power generation and petrochemical plants.
Coatings and Linings for Enhanced Performance
In addition to material selection, the valve’s coating and lining are critical for enhancing its performance and extending its service life. Coatings and linings provide additional protection against corrosion, erosion, and abrasion, ensuring that the valve performs optimally in challenging environments.
Coatings
Common coatings used on forged steel gate valves include epoxy, polyurethane, and fluoropolymer. These coatings protect the valve’s surface from corrosion, extending its lifespan and maintaining its performance even in harsh conditions.
Linings
Linings such as rubber, PTFE, and ceramic can be applied to the interior of the valve to protect it from corrosion and erosion caused by the flow of abrasive or corrosive fluids. These linings enhance the valve’s sealing capabilities and ensure long-term reliability.
Conclusion
Forged steel gate valves are indispensable components in many industries, offering superior strength, durability, and sealing capabilities. Whether used in high-pressure systems, steam lines, or chemical plants, these valves provide reliable performance under challenging conditions. With various body-bonnet connection designs and material options, forged steel gate valves can be tailored to meet the specific needs of each application, ensuring optimal performance and long-term reliability. Proper installation, maintenance, and material selection further enhance their effectiveness, making them a critical choice for demanding industrial applications.
