Introduction
Forged steel ball valves are fundamental components in industrial piping systems, playing a critical role in controlling the flow of liquids and gases. These valves are renowned for their robust construction, high durability, and ability to withstand extreme temperatures and pressures. Unlike cast steel valves, forged steel ball valves are manufactured by heating steel to a high temperature and shaping it through a forging process, which significantly enhances their strength and integrity.
In this comprehensive guide, we will delve into the intricacies of forged steel ball valves, covering their working principles, advantages, disadvantages, key selection criteria, and maintenance practices. Additionally, we will discuss their widespread applications in various industries and why they are preferred over other types of valves.
What Are Forged Steel Ball Valves?

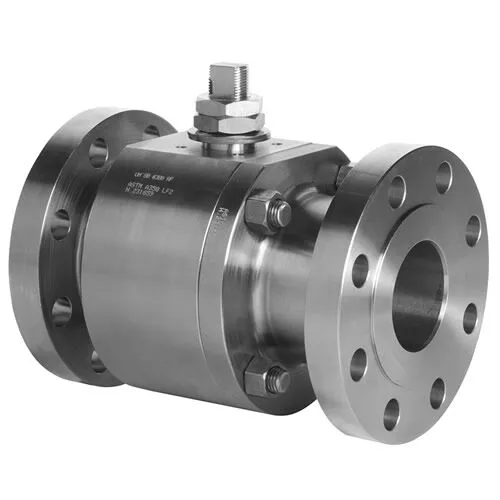

Forged steel ball valves are a type of quarter-turn valve that utilizes a spherical closure unit, commonly known as the ball, to control fluid flow. The ball is designed with a central bore or hole, which aligns with the flow when the valve is open and blocks it when closed. The ball is positioned between two sealing seats that ensure a tight shut-off when the valve is in the closed position.
The forging process involves heating high-quality steel billets to a temperature where they become malleable, followed by hammering or pressing to achieve the desired shape. This process improves the valve’s mechanical properties, including its toughness, ductility, and resistance to cracking. As a result, forged steel ball valves are exceptionally durable and are capable of enduring high-pressure and high-temperature environments.
How Do Forged Steel Ball Valves Work?
The fundamental operation of a forged steel ball valve is based on the simple principle of quarter-turn rotation. Here’s how it works:
Valve Components: A typical forged steel ball valve consists of a spherical ball, valve body, stem, seat rings, and an actuator or handle.
Opening and Closing: When the actuator or handle is turned 90 degrees, the ball rotates within the valve body. If the bore aligns with the pipeline, fluid flows freely through the valve. Conversely, when the bore is perpendicular to the pipeline, the ball obstructs flow, creating a tight seal.
Sealing Mechanism: The valve seats, often made from resilient materials like PTFE or metal, form a tight seal around the ball, preventing leakage.
Flow Control: The floating ball design allows for a tight seal, while the trunnion-mounted ball design (used for larger valves) minimizes friction and reduces torque.
Advantages of Forged Steel Ball Valves
Forged steel ball valves offer numerous advantages over cast steel and other valve types:
1. Enhanced Mechanical Strength
The forging process eliminates internal voids and reduces the likelihood of flaws, resulting in greater tensile strength and impact resistance. This makes forged steel ball valves particularly suitable for applications involving high pressure and temperature.
2. Durability and Longevity
Forged steel valves can withstand mechanical stress and environmental challenges, such as corrosion and thermal fatigue. Their robust construction means they have a longer service life, reducing maintenance needs.
3. High-Pressure and High-Temperature Resistance
Due to their dense and defect-free structure, forged steel ball valves are ideal for industries that demand reliability under extreme conditions, such as oil and gas, petrochemicals, and power generation.
4. Compact and Lightweight Design
Despite their durability, forged steel ball valves tend to be more compact and lighter than cast steel alternatives, making installation and handling easier.
5. Tight Shut-Off Capability
These valves provide an excellent shut-off feature, minimizing leakage and ensuring safety in critical applications.
Disadvantages of Forged Steel Ball Valves
While forged steel ball valves have many benefits, there are also some drawbacks to consider:
1. Limited Size Range
Forging is typically more practical for smaller valves, making it challenging to produce large-diameter valves cost-effectively.
2. Material Limitations
Not all metals are suitable for forging. While steel is an ideal candidate, other alloys may not offer the same level of ductility, limiting material options.
3. Higher Manufacturing Costs
The forging process is more labor-intensive and requires specialized equipment, leading to higher production costs compared to casting methods.
Applications of Forged Steel Ball Valves
Forged steel ball valves are commonly employed across various industries, including:
1. Oil and Gas Industry
They are extensively used for flow control in pipelines, refineries, and offshore platforms due to their ability to withstand high pressure and corrosion.
2. Power Generation
Power plants utilize forged steel ball valves for controlling steam and condensate flow, especially in high-temperature environments.
3. Petrochemical and Chemical Processing
These valves are favored for handling aggressive and volatile chemicals due to their tight shut-off and robust construction.
4. Water and Wastewater Treatment
In water management systems, they ensure reliable flow regulation and minimal leakage, which is crucial for maintaining water quality.
5. Industrial Manufacturing
Forged steel ball valves are employed in automated production lines for controlling gases, coolants, and other fluids.
How to Select the Right Forged Steel Ball Valve
Choosing the appropriate forged steel ball valve requires careful consideration of several factors:
1. Pressure and Temperature Requirements
Determine the maximum operating pressure and temperature to select a valve that can handle the conditions without compromising safety or performance.
2. Valve Size and Port Configuration
Full-port valves allow maximum flow with minimal pressure drop, while reduced-port models are more compact and suitable for high-pressure applications.
3. Material Selection
Common materials include carbon steel, stainless steel, and alloy steel. Choose a material compatible with the fluid and the environmental conditions.
4. End Connection Types
Options include threaded, flanged, and socket-weld connections. The choice depends on installation preferences and pipeline requirements.
5. Actuation Options
Manual, electric, pneumatic, and hydraulic actuators are available. Electric actuators are suitable for automation, while manual options are more cost-effective for simpler applications.
6. Compliance with Standards
Ensure the valve meets relevant industry standards, such as API, ASME, or DIN, for safety and quality assurance.
Maintenance Tips for Forged Steel Ball Valves
To maintain performance and longevity, follow these best practices:
Regular Inspection: Check for signs of wear, corrosion, and leakage periodically.
Lubrication: Keep moving parts well-lubricated to minimize friction and ensure smooth operation.
Cleaning: Remove debris and sediments that can cause valve clogging or damage to sealing components.
Actuator Maintenance: Inspect actuators for smooth functioning and replace worn-out parts promptly.
Seal Replacement: Swap out damaged or degraded seals to maintain a tight shut-off.
Future Trends and Innovations
The development of forged steel ball valves continues to evolve, driven by advancements in metallurgy and automation technology. Some emerging trends include:
Smart Valves with IoT Integration: Enabling real-time monitoring and remote operation for enhanced safety and efficiency.
Advanced Coatings: Corrosion-resistant coatings that extend valve life, especially in harsh environments.
Compact and Lightweight Designs: Innovations in forging techniques to reduce weight without compromising strength.
Conclusion
Forged steel ball valves remain a vital component in industrial fluid control systems, known for their robust design, durability, and high-pressure capabilities. By understanding their advantages, limitations, and selection criteria, industries can make informed choices to optimize performance and safety. As technology progresses, these valves will continue to play a pivotal role in modern industrial applications.
Whether you are involved in the oil and gas sector, chemical processing, or power generation, investing in high-quality forged steel ball valves can significantly enhance system reliability and longevity.
