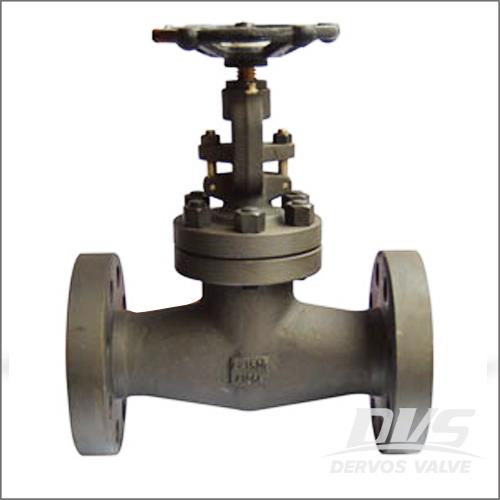

Integral Flanged Globe Valve, Class 150, 2 Inch, A105N, OS&Y
Key Specifications / Features
Hits: 11
China OS&Y Globe Valves Maker Wholesales Integral Flanged Globe Valve, Class 150-1500 LB, 1/2-4 Inch, ASTM A105N, Outside Screw And Yoke, Bolted Bonnet.
Tags
Detail Information
Quick Detail:
Type: Integral Flanged Globe Valve.
Material: ASTM A105N.
Valve Size: 2 Inch.
Applicable Pressure Rating: Class 150 LB.
Temperature Rating: Up To 500℃.
Molding Style: Forging.
Product Range:
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy.
Standards: API 602, BS5352, ASME B16.34, ASME B16.11, ASME B1.20.1, ASME B16.25.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: CLASS 150 LB - 1500 LB.
Temperature Rating: Up To 500℃.
Molding Style: Forging.
FORGED STEEL FLANGED GLOBE VALVE - Outside Screw & Yoke, Bolted Bonnet.
STANDARD MATERIALS
Design And Manufacture Conform To: API 602, BS 5352, ASME B16.34/ B16.5.
Structure Features:
★ End Connection: Flanged Type
★ Outside Screw & Yoke, Bolted Bonnet
★ Reduce Bore
★ Non-Rising Stem / Rising Handwheel
Type: Integral Flanged Globe Valve.
Material: ASTM A105N.
Valve Size: 2 Inch.
Applicable Pressure Rating: Class 150 LB.
Temperature Rating: Up To 500℃.
Molding Style: Forging.
Product Range:
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy.
Standards: API 602, BS5352, ASME B16.34, ASME B16.11, ASME B1.20.1, ASME B16.25.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: CLASS 150 LB - 1500 LB.
Temperature Rating: Up To 500℃.
Molding Style: Forging.
FORGED STEEL FLANGED GLOBE VALVE - Outside Screw & Yoke, Bolted Bonnet.
STANDARD MATERIALS
 | PART NAMES | MATERIALS |
| BODY | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. | |
| BONNET | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. | |
| SEAT | ASTM A105 + HF | |
| DISC | ASTM A276 420 | |
| STEM | ASTM A276 410 | |
| GASKET | 304 + GRAPHITE | |
| HANDWHEEL | ASTM A197 | |
| PACKING | GRAPHITE | |
| GLAND | ASTM A276 410 |
 | PRESSURE TEST ( A105 ) | ||||
| CLASS | SHELL (psig) | BACKSEAT(psig) | SEAT(psig) | ||
| WATER | WATER | AIR | WATER | ||
| 150LB | 450 | 325 | - | 325 | |
| 300LB | 1125 | 825 | 825 | ||
| 600LB | 2225 | 1650 | 1650 | ||
| 800LB | 2975 | 2175 | 2175 | ||
| 900LB | 3350 | 2450 | 2450 | ||
| 1500LB | 5575 | 4100 | 4100 | ||
Design And Manufacture Conform To: API 602, BS 5352, ASME B16.34/ B16.5.
Structure Features:
★ End Connection: Flanged Type
★ Outside Screw & Yoke, Bolted Bonnet
★ Reduce Bore
★ Non-Rising Stem / Rising Handwheel
