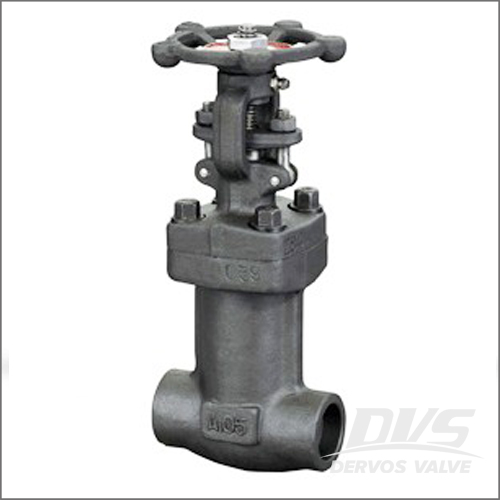

Forged Bellows Sealed Globe Valve, OS&Y, Bolted Bonnet, API 602
Key Specifications / Features
Model No.: Hits: 2
China Bellows Globe Valve Producer Offers Forged Bellows Sealed Globe Valve, OS&Y, Bolted Bonnet, API 602, Threaded, Socket-Welded or Butt-Welded End.
Request a quoteTags
Detail Information

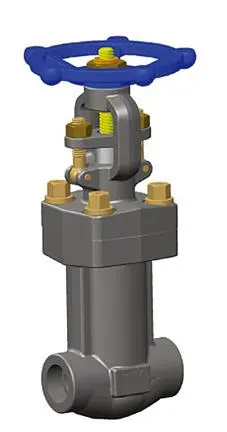

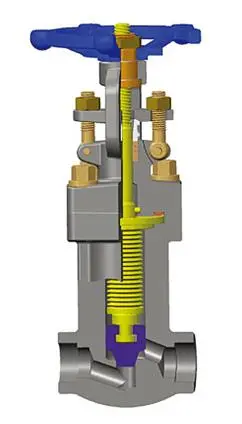

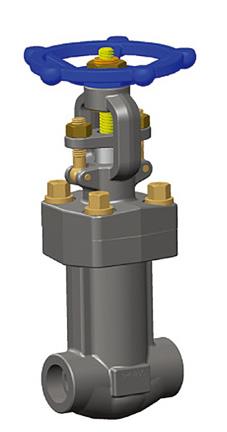

FORGED BELLOWS GLOBE VALVE - Outside Screw & Yoke (OS&Y), Bolted Bonnet (BB)
STANDARD MATERIALS
SPECIFICATIONS
⑴ Design and Manufacture Conform to: API 602, MSS SP-117, ASME B16.34/ B16.11/ B1.20.1/ B16.25
⑵ Valve Size: 1/2 Inch - 4 Inch
⑶ Applicable Rating: Class 150 LB - 800 LB
⑷ Temperature Rating: Up to 500℃
⑸ Bellows Test Pressure: 80 psig
⑹ Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded
★ Outside Screw & Yoke, Bolted Bonnet
★ Reduce Bore
★ Rising Stem / Non-Rising Handwheel
STANDARD MATERIALS
| PART NAMES | MATERIALS |
| BODY | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. |
| BONNET | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. |
| SEAT | ASTM A276 410 + HF |
| WEDGE | ASTM A276 420 |
| STEM | ASTM A276 410 |
| GASKET | 304 + GRAPHITE |
| HANDWHEEL | ASTM A197 |
| PACKING | GRAPHITE |
| GLAND | ASTM A276 410 |
| BELLOWS | ASTM A240 316 |
SPECIFICATIONS
⑴ Design and Manufacture Conform to: API 602, MSS SP-117, ASME B16.34/ B16.11/ B1.20.1/ B16.25
⑵ Valve Size: 1/2 Inch - 4 Inch
⑶ Applicable Rating: Class 150 LB - 800 LB
⑷ Temperature Rating: Up to 500℃
⑸ Bellows Test Pressure: 80 psig
⑹ Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded
★ Outside Screw & Yoke, Bolted Bonnet
★ Reduce Bore
★ Rising Stem / Non-Rising Handwheel
