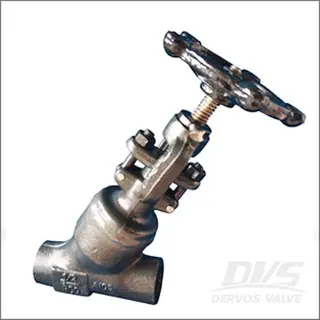

Y Type Forged Globe Valve, ASTM A105N, CL800, API 602, ASME B16.34

Type: Y Type Forged Globe Valve.
Material: ASTM A105N, etc.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: Class 150 LB - 1500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.

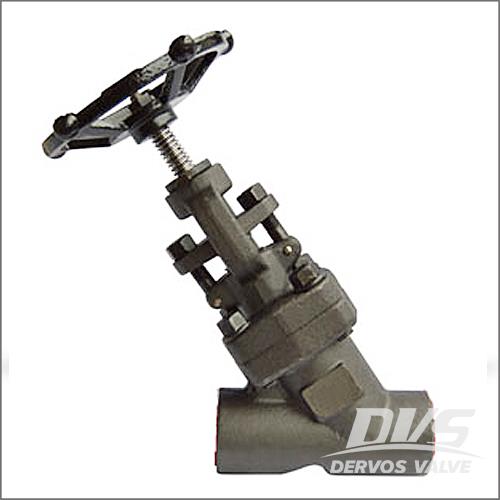

FORGED STEEL Y-TYPE GLOBE VALVE - Outside Screw & Yoke, Bolted Bonnet.

STANDARD MATERIALS:

	PART NAMES	MATERIALS
	BODY	A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc.
	BONNET	A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc.
	SEAT	ASTM A105 + HF
	DISC	ASTM A276 420
	STEM	ASTM A276 410
	GASKET	304 + GRAPHITE
	HANDWHEEL	ASTM A197
	PACKING	GRAPHITE
	GLAND	ASTM A276 410

PRESSURE TEST ( A105 )
CLASS	SHELL (psig)	BACKSEAT(psig)	SEAT(psig)
CLASS	WATER	WATER	AIR	WATER
150LB	450	325	-	325
300LB	1125	825		825
600LB	2225	1650		1650
800LB	2975	2175		2175
900LB	3350	2450		2450
1500LB	5575	4100		4100

Design and Manufacture Conform to: API 602, BS 5352, ASME B16.34/ B16.11/ B1.20.1/ B16.25.

Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded
★ Outside Screw & Yoke, Bolted Bonnet
★ Reduce Bore / Full Bore
★ Non-Rising Stem / Rising Handwheel
