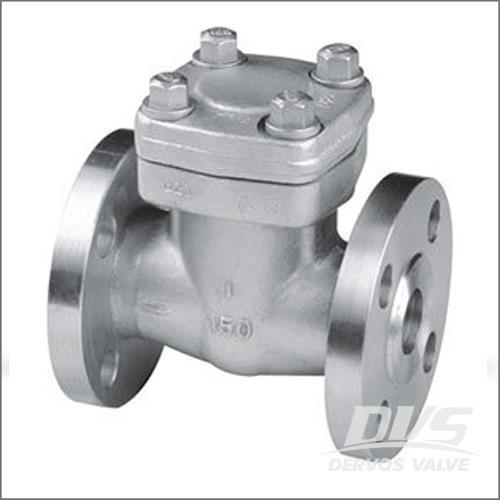

RF Flanged Piston Check Valve, ASTM A182 F304, CL150, Bolted Bonnet
Key Specifications / Features
Hits: 19
China Bolted Bonnet Valve Factory Makes RF Flanged Piston Check Valve, ASTM A182 F304, 150 LBs, Bolted Bonnet, to Cut Off Or Connect Pipeline Medium.
Tags
Detail Information
Type: RF Flanged Piston Check Valve.
Body Material: ASTM A182 F304.
Disc material: 304+STL.
Material Std.: AISI/ASTM.
Valve Size: 1/2 - 2 Inch.
Applicable Pressure Rating: Class 150 LB.
Molding Style: Forging.
Forged steel check valves are applicable to pipelines of various working conditions such as oil, chemical, and thermal power stations with an ANSI Class 150 to 2500 and working temperature <600°C, as cut off or connect the pipeline medium. Suitable media: water, oil, steam and so on.
Basic Info
● Design conform to API 602, ASME B16.34
● Face to Face conform to ASME B16.10
● Flange dimension conform to ASME B16.5
● Test & Inspection Standard: API 598
● Type: Lift/ Piston
● Connection: RF Flange

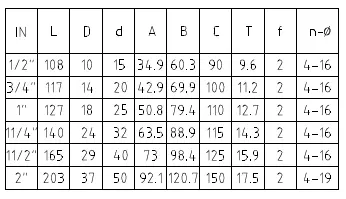

● Dimensions
● Origin: Zhejiang, China
● Certification: ISO 9001:2008,API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate etc
● Warranty Period: 18 months
● Tariff Code: 8481804090
Body Material: ASTM A182 F304.
Disc material: 304+STL.
Material Std.: AISI/ASTM.
Valve Size: 1/2 - 2 Inch.
Applicable Pressure Rating: Class 150 LB.
Molding Style: Forging.
Forged steel check valves are applicable to pipelines of various working conditions such as oil, chemical, and thermal power stations with an ANSI Class 150 to 2500 and working temperature <600°C, as cut off or connect the pipeline medium. Suitable media: water, oil, steam and so on.
Basic Info
● Design conform to API 602, ASME B16.34
● Face to Face conform to ASME B16.10
● Flange dimension conform to ASME B16.5
● Test & Inspection Standard: API 598
● Type: Lift/ Piston
● Connection: RF Flange
● Dimensions
● Origin: Zhejiang, China
● Certification: ISO 9001:2008,API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate etc
● Warranty Period: 18 months
● Tariff Code: 8481804090
