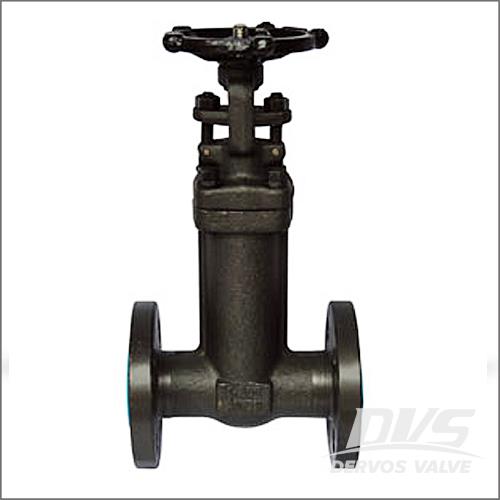

Forged Bellow Seal Gate Valve, A105N, CL150-600 1/2-4 Inch, Flanged
Key Specifications / Features
Model No.: Hits: 7
China Forged Steel Valves Manufacturer Offers Forged Steel Bellows Seal Gate Valve, A105N, 1/2-4 Inch, Class 150-600 LB, Flanged Type.
Request a quoteTags
Detail Information
Type: Forged Steel Bellows Seal Gate Valve.
Material: A105N, etc.
Valve Size: 1/2 - 4 Inch.
Pressure Rating: Class 150 LB - 600 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
Bellows Test Pressure: 80 psig.
FORGED STEEL FLANGED BELLOWS GATE VALVE - Outside Screw & Yoke, Bolted Bonnet.
STANDARD MATERIALS:
Design and Manufacture Conform to: API 602, MSS SP-117, ASME B16.34/ B16.5.
Structure Features:
★ End Connection: Flanged Type.
★ Outside Screw & Yoke, Bolted Bonnet.
★ Reduce Bore.
★ Rising Stem / Non-Rising Handwheel.
Material: A105N, etc.
Valve Size: 1/2 - 4 Inch.
Pressure Rating: Class 150 LB - 600 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
Bellows Test Pressure: 80 psig.
FORGED STEEL FLANGED BELLOWS GATE VALVE - Outside Screw & Yoke, Bolted Bonnet.
STANDARD MATERIALS:
| PART NAMES | MATERIALS |
| BODY | A105; LF2; F5; F22; F304(L); F316(L); F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. |
| BONNET | A105; LF2; F5; F22; F304(L); F316(L); F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. |
| SEAT | ASTM A276 410 + HF |
| WEDGE | ASTM A276 420 |
| STEM | ASTM A276 410 |
| GASKET | 304 + GRAPHITE |
| HANDWHEEL | ASTM A197 |
| PACKING | GRAPHITE |
| GLAND | ASTM A276 410 |
| BELLOWS | ASTM A240 316 |
Design and Manufacture Conform to: API 602, MSS SP-117, ASME B16.34/ B16.5.
Structure Features:
★ End Connection: Flanged Type.
★ Outside Screw & Yoke, Bolted Bonnet.
★ Reduce Bore.
★ Rising Stem / Non-Rising Handwheel.
