Extended Body Gate Valve, A105N, 1 Inch, Class 800, Male NPT

Quick Detail:
Type: Extended Body Gate Valve.
Material: ASTM A105.
Valve Size: 1 Inch.
Applicable Pressure Rating: Class 800 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.

Product Range:

Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy.

Standards: API 602, API 606, BS 5352,ASME B16.34, ASME B16.11, ASME B1.20.1, ASME B16.25.

Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: Class 800 LB -1500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.

PRODUCT DETAILS:
Forged Steel Extended Gate Valve - Outside Screw & Yoke, Bolted Bonnet.

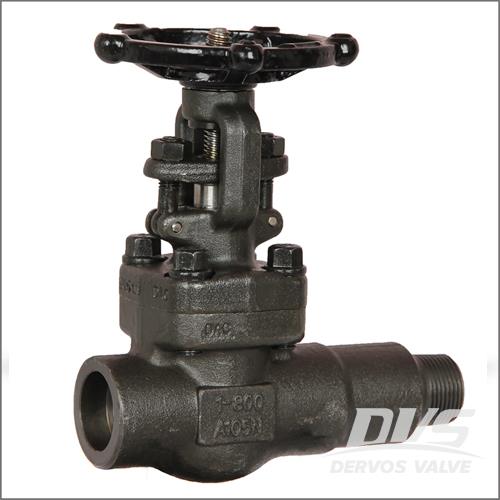

Extended Body Forged Gate Valve, A105N, 1 Inch, Class 800, Male NPT

STANDARD MATERIALS:

PART NAMES	MATERIALS
BODY	A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc.
BONNET	A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc.
SEAT	ASTM A276 410 + HF
WEDGE	ASTM A276 420
STEM	ASTM A276 410
GASKET	304 + GRAPHITE
HANDWHEEL	ASTM A197
PACKING	GRAPHITE
GLAND	ASTM A276 410

Design and Manufacture Conform to: API 602, API606, ASME B16.34/ B16.11/ B1.20.1.

Structure Features:
★ End Connection: Threaded or Socket-Welded Type.
★ Outside Screw & Yoke, Bolted Bonnet.
★ Reduce Bore / Full Bore.
★ Rising Stem / Non-Rising Handwheel.
