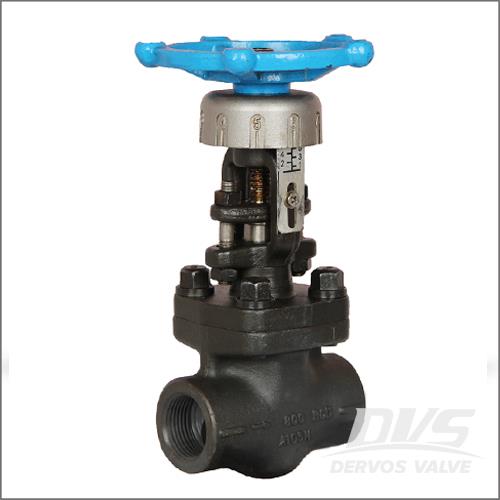

Full Bore Forged Steel Globe Valve, 1/2-4 Inch, Class 150-1500 LB
Key Specifications / Features
Hits: 8
China Forged Steel Globe Valve Factory Makes Full Bore Forged Steel Globe Valve, 1/2-4 Inch, Class 150-1500 LB, Non-Rising Stem or Rising Handwheel.
Tags
Detail Information
Type: Full Bore Forged Steel Globe Valve.
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F316, etc.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: Class 150 LB - 1500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
FORGED STEEL GLOBE VALVE - Outside Screw & Yoke, Bolted Bonnet.
STANDARD MATERIALS:
Design and Manufacture Conform to: API 602, BS 5352, ASME B16.34 / B16.11 / B1.20.1 / B16.25.
Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded
★ Outside Screw & Yoke, Bolted Bonnet
★ Reduce Bore / Full Bore
★ Non-Rising Stem / Rising Handwheel
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F316, etc.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: Class 150 LB - 1500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
FORGED STEEL GLOBE VALVE - Outside Screw & Yoke, Bolted Bonnet.
STANDARD MATERIALS:
 | PART NAMES | MATERIALS |
| BODY | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. | |
| BONNET | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. | |
| SEAT | ASTM A105 + HF | |
| DISC | ASTM A276 420 | |
| STEM | ASTM A276 410 | |
| GASKET | 304 + GRAPHITE | |
| HANDWHEEL | ASTM A197 | |
| PACKING | GRAPHITE | |
| GLAND | ASTM A276 410 |
 | PRESSURE TEST ( A105 ) | ||||
| CLASS | SHELL (psig) | BACKSEAT(psig) | SEAT(psig) | ||
| WATER | WATER | AIR | WATER | ||
| 150LB | 450 | 325 | - | 325 | |
| 300LB | 1125 | 825 | 825 | ||
| 600LB | 2225 | 1650 | 1650 | ||
| 800LB | 2975 | 2175 | 2175 | ||
| 900LB | 3350 | 2450 | 2450 | ||
| 1500LB | 5575 | 4100 | 4100 | ||
Design and Manufacture Conform to: API 602, BS 5352, ASME B16.34 / B16.11 / B1.20.1 / B16.25.
Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded
★ Outside Screw & Yoke, Bolted Bonnet
★ Reduce Bore / Full Bore
★ Non-Rising Stem / Rising Handwheel
