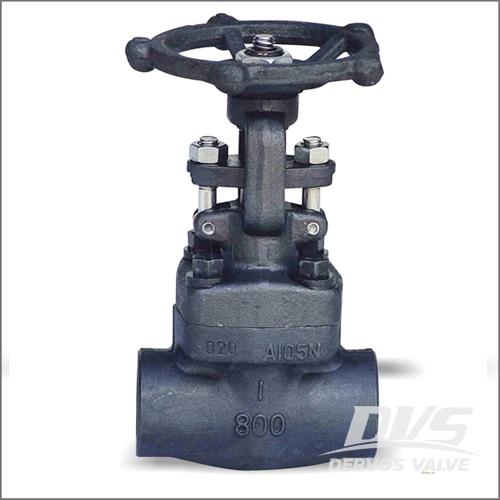

Flexible Wedge Gate Valve, ASTM A105N, 800 LB, FNPT, Ful Port, OS&Y
Key Specifications / Features
Hits: 18
OS&Y Gate Valve Supplier in China Offers Flexible Wedge Gate Valve, ASTM A105N, Class 800 LB, 1/2-2 Inch, FNPT, Ful Port, OS&Y, API 602, ANSI B1.20.1.
Tags
Detail Information
Type: Flexible Wedge Gate Valve.
Body Material: ASTM A105N.
Wedge/ Seat Material: A276-420.
Stem Material: A276-410.
Valve Size: 1/2 - 2 Inch.
Pressure Rating: Class 800 LB.
Molding Style: Forging.
Forged gate valves can apply in high pressure pipeline, petroleum, chemical, pharmaceutical, chemical fertilizer and power industry.
Basic Info
● Design Std.: API 602.
● FNPT Dimension Std.: ANSI B1.20.1.
● Material Std.: AISI/ASTM
● Test & Inspection Standard: API 598
● Structure: OS&Y
● Type of Gate: Fexible Wedge
● Port: Full
● Origin: Zhejiang, China
● Certification: ISO 9001: 2008, API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate, etc.
● Warranty Period: 18 months
● Tariff Code: 8481804090
Body Material: ASTM A105N.
Wedge/ Seat Material: A276-420.
Stem Material: A276-410.
Valve Size: 1/2 - 2 Inch.
Pressure Rating: Class 800 LB.
Molding Style: Forging.
Forged gate valves can apply in high pressure pipeline, petroleum, chemical, pharmaceutical, chemical fertilizer and power industry.
Basic Info
● Design Std.: API 602.
● FNPT Dimension Std.: ANSI B1.20.1.
● Material Std.: AISI/ASTM
● Test & Inspection Standard: API 598
● Structure: OS&Y
● Type of Gate: Fexible Wedge
● Port: Full
● Origin: Zhejiang, China
● Certification: ISO 9001: 2008, API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate, etc.
● Warranty Period: 18 months
● Tariff Code: 8481804090
