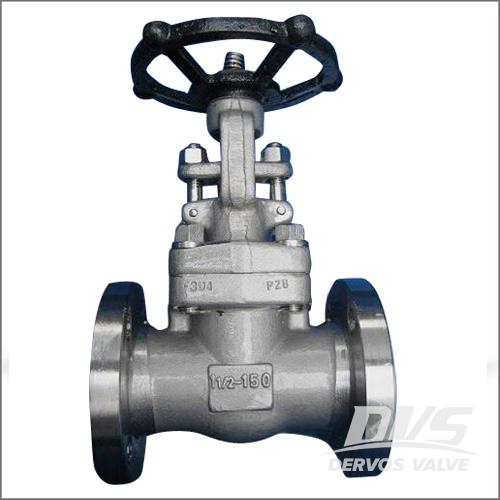

304 Stainless Steel Gate Valve, 150 LB, Integral Flanged, Full Port

Type: F304 Stainless Steel Gate Valve.
Body Material: F304.
Wedge/Stem Material: 304.
Seat Material: 304+STL.
Valve Size: 1/2 - 2 Inch.
Pressure Rating: Class 150 LB.
Molding Style: Forging.

A gate valve is mainly used in the pipeline to cut, distribute and change the flow direction of the medium. The forged steel gate valve is suitable for gas, steam and oil products. The maximum operating temperature is 550°C.

Basic Info:
◆ Design conform to API 602, ASME B16.34
◆ Face to Face conform to ASME B16.10
◆ Flange dimension conform to ASME B16.5
◆ Material conform to AISI/ASTM
◆ Test & Inspection conform to API 598

◆ Operation: Handwheel
◆ Structure: Integral Flange
◆ Port: Full Port
◆ Media: Gas, Oil and Steam

◆ Origin: Zhejiang, China
◆ Certification: ISO 9001: 2008, API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate, etc.
◆ Payment Terms: 30% T/T WHEN ORDER, 70% T/T BEFORE SHIPMENT
◆ Warranty Period: 18 months
◆ Tariff Code: 8481804090

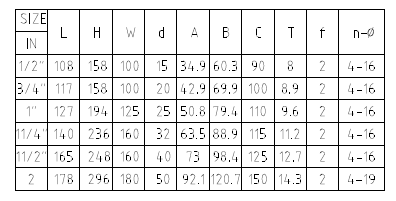

◆ Dimensions
