Integral Flanged Cryogenic Gate Valve, F304L, Class 150, 3/4 Inch
Key Specifications / Features
Hits: 15
China Integral Flanged Gate Valve Fabricator Provides Integral Flanged Cryogenic Gate Valve, F304L, Forged Stainless Steel, Class 150, 3/4 Inch, BS 6364.
Tags
Detail Information

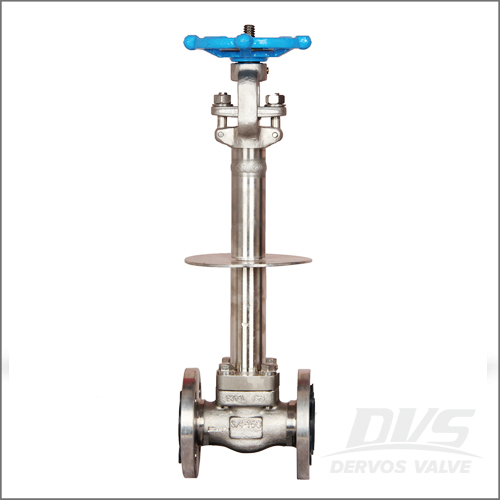

FORGED STAINLESS STEEL CRYOGENIC GATE VALVE - Outside Screw & Yoke (OS&Y), Integral Flange
STANDARD MATERIALS
SPECIFICATIONS
⑴ Design and Manufacture Conform to: API 602, BS 6364, MSS SP-134, ASME B16.34/ B16.5.
⑵ Valve Size: 1/2 - 4 Inch.
⑶ Applicable Rating: Class 150 LB - 1500 LB.
⑷ Temperature Rating: Down to -196℃.
⑸ Structure Features:
★ End Connection: Flanged Type
★ Long Extended Bonnet
★ Actuator: Handwheel
★ Pressure Relief Design ( Pressure Balance Design)
★ Fire Safety / Anti-static Design
★ Non-Rising Handwheel
STANDARD MATERIALS
| PART NAMES | MATERIALS |
| BODY | F304; F304L; F316; F316L |
| BONNET | F304; F304L; F316; F316L |
| SEAT | ASTM A276 304(L) / 316(L) + HF |
| WEDGE | ASTM A276 304(L) / 316(L) |
| STEM | ASTM A276 304(L) / 316(L) |
| GASKET | 304 + GRAPHITE |
| HANDWHEEL | ASTM A197 |
| PACKING | GRAPHITE |
| GLAND | ASTM A276 304(L) / 316(L) |
SPECIFICATIONS
⑴ Design and Manufacture Conform to: API 602, BS 6364, MSS SP-134, ASME B16.34/ B16.5.
⑵ Valve Size: 1/2 - 4 Inch.
⑶ Applicable Rating: Class 150 LB - 1500 LB.
⑷ Temperature Rating: Down to -196℃.
⑸ Structure Features:
★ End Connection: Flanged Type
★ Long Extended Bonnet
★ Actuator: Handwheel
★ Pressure Relief Design ( Pressure Balance Design)
★ Fire Safety / Anti-static Design
★ Non-Rising Handwheel
