Key Specifications / Features
Model No.: FGV-20250402-02 Hits: 0
As a trusted supplier of forged gate valves from China, we offer high-performance valves that meet the API 602 and NACE MR0175 standards. Our forged gate valves are available in sizes from 1/4 inch to 2 inches, with a pressure rating of Class 800 LB. Built with robust ASTM A105N and ASTM A182 body materials, these valves feature threaded and socket weld ends for reliable, leak-free connections. Ideal for demanding industrial applications, our valves ensure durability, safety, and precise flow control in harsh environments.
Request a quoteTags
Detail Information

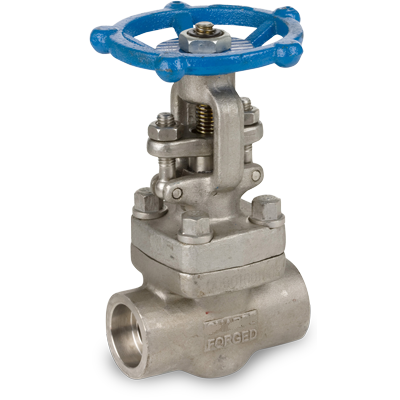

Product Item: Forged Gate Valve, ASTM A105N
Design Standards: API 602, NACE MR0175
Size Range: NPS 1/4 Inch - 2 Inch(DN8-DN50)
Pressure Class: Class 800 LB
Body Materials: Forged ASTM A105N Steel (Trim 8), Forged ASTM A182 Stainless Steel (Trim 12)
End Connections: Threaded, Socket Weld
Features: Outside Screw and Yoke (OS&Y) - Rising Stem Design, Bi-directional shut-off
