Key Specifications / Features
Model No.: FSGV-20250402-03 Hits: 0
As a leading supplier of forged steel globe valves in China, we offer high-quality valves designed to meet API 602 and ANSI B16.34 standards. Available in sizes from 1/2 inch to 2 inches, with pressure ratings ranging from Class 150 LB to 2500 LB, our Y-pattern globe valves provide exceptional flow control. Featuring socket weld ends in accordance with ASME B16.11, these valves ensure secure, leak-tight connections and reliable performance in demanding applications. Trust our forged steel globe valves for durability, precision, and long-lasting reliability.
Request a quoteTags
Detail Information

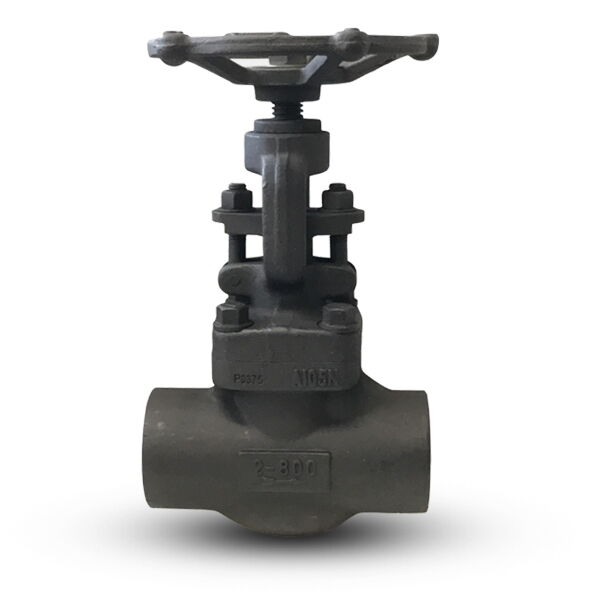

Product Item: Forged Steel Globe Valves
Design Standard: API 602, ANSI B16.34
Size: 1/2 Inch - 2 Inch
Pressure: Class 150 LB - 2500 LB
Test & Inspection: API 598
End-to-End: DHV Standard
Screwed Ends (NPT): ANSI/ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25
End Flange: ANSI B16.5
Design Features:
1. Outside Screw and Yoke (OS&Y): Provides easy maintenance and precise stem positioning.
2. Two-Piece Self-Aligning Packing Gland: Ensures proper alignment and effective sealing.
3. Bolted Bonnet with Spiral-Wound Gasket: Guarantees reliable sealing and ease of maintenance.
4. Integral Backseat: Enhances valve safety by preventing leakage and providing additional seating support.
Optional Features:
Cast Steel, Alloy Steel, Stainless Steel
Y-Pattern
Full Port or Regular Port
Extended Stem or Below Seal
Welded Bonnet or Pressure Seal Bonnet
Locking Device upon request
Manufacturing to NACE MR0175 upon request
