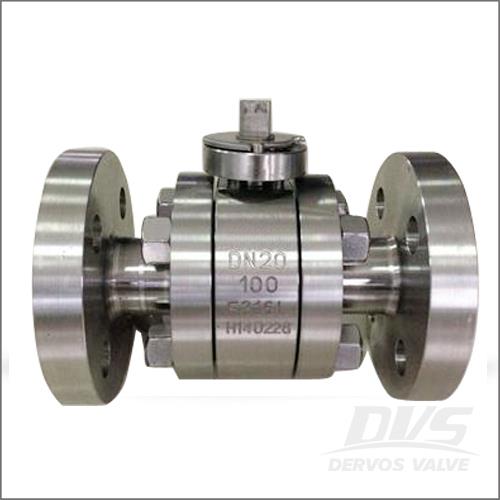

Forged Steel Actuated Ball Valve, F316L, DN20, PN100, RF Flanged
Key Specifications / Features
Hits: 9
China Actuated Ball Valve Producer Offers Forged Steel Actuated Ball Valve, ASTM A182 F316L Body and Ball, SS316 Blow-out-proof Stem, DN20, PN100, RF.
Tags
Detail Information
Type: Forged Steel Actuated Ball Valve.
Ball/Body Material: ASTM A182 F316L.
Stem Material: SS316.
Seat Material: RPTFE.
Valve Size: DN20.
Pressure Rating: PN100.
Temperature Range: -29 to 200℃.
Molding Style:Forging.
● Blow-out-proof Stem Design
● ISO 5211 Actuator Mounting Pad
● Connection Form: RF Flange
● Design and Manufacture: API 6D
● Fire Safe Design: API 607
● Flange Dimensions: ANSI B16.5
● Test Standard: API 598
● Flow pattern: Straight Through
● Application: Industrial Usage, Water Industrial Usage
● HS Code: 8481804090
● Origin: China
Ball/Body Material: ASTM A182 F316L.
Stem Material: SS316.
Seat Material: RPTFE.
Valve Size: DN20.
Pressure Rating: PN100.
Temperature Range: -29 to 200℃.
Molding Style:Forging.
● Blow-out-proof Stem Design
● ISO 5211 Actuator Mounting Pad
● Connection Form: RF Flange
● Design and Manufacture: API 6D
● Fire Safe Design: API 607
● Flange Dimensions: ANSI B16.5
● Test Standard: API 598
● Flow pattern: Straight Through
● Application: Industrial Usage, Water Industrial Usage
● HS Code: 8481804090
● Origin: China
