Key Specifications / Features
Model No.: FFBV-20250402-06 Hits: 0
As a leading forged floating ball valve manufacturer, we provide high-performance valves designed to meet API 6D and API 608 standards. Available in sizes from 1/2 inch to 10 inches, with pressure ratings from Class 150 LB to 2500 LB, our valves feature a reliable soft seal for tight shutoff. Built with ASME B16.10 face-to-face dimensions and gear operation, these valves ensure precise control, easy handling, and exceptional durability. Ideal for demanding industrial applications, our forged floating ball valves deliver superior performance and long-lasting reliability.
Request a quoteTags
Detail Information

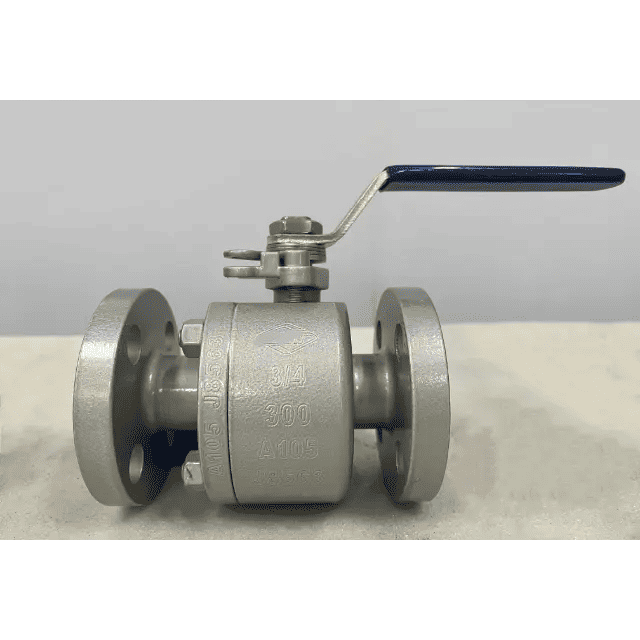

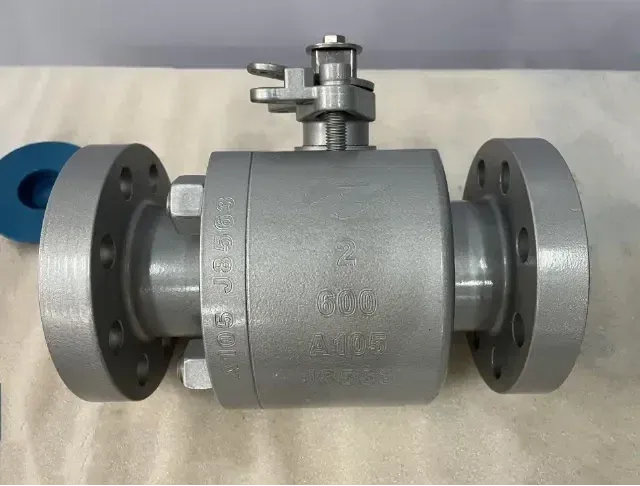

Product Name: Forged Floating Ball Valves
Design Standard: API 6D, API 608, GB/T 12237, ISO 17292
Size Range: 1/2 Inch - 10 Inch
Pressure Range: Class 150 LB - 2500 LB
End Connection: ASME B16.5, JB/T 79.1, HG/T 20592
Face to face: ASME B16.10, GB/T 12221 , JB/T 1686
Temperature Range: -160 - 425 Degree
Seals: Soft Seal, Metal to Metal
Operation: Lever, Gear, Pneumatic, Electric Actuator
Main Features: Durable Material, Accurate Fluid Control, Excellent Sealing Performance, Flexible Operation, High Temperature and Pressure Resistance, Corrosion Resistance, Wide Range of Diameters
