Key Specifications / Features
Model No.: FSCV-20250402-04 Hits: 0
As a leading provider of forged check valves from China, we offer valves with carbon steel ASTM A105N and stainless steel bodies, built to API 602 and ASME B16.34 design standards. Available in sizes ranging from 1/4 inch to 4 inches and pressure ratings from 150 LB to 2500 LB, our forged check valves are equipped with flanged ends for secure, leak-free connections. Designed for durability and reliability, these valves ensure optimal flow control and performance in a wide range of demanding industrial applications. Trust us for high-quality forged check valves.
Request a quoteTags
Detail Information

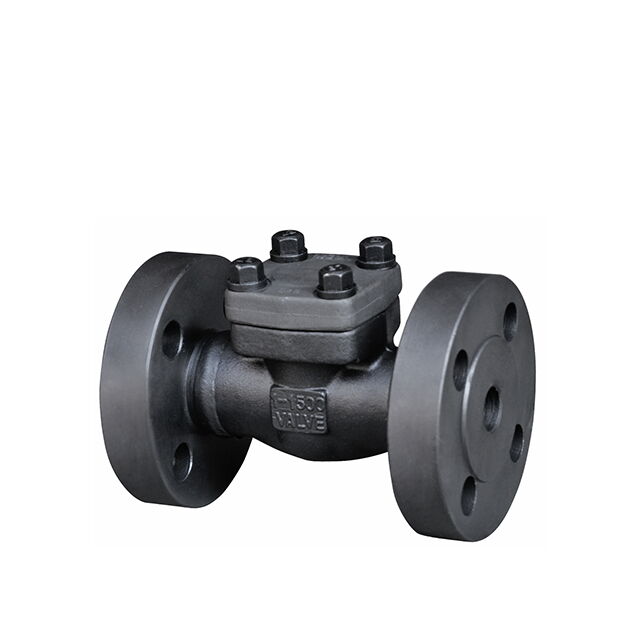

Product Item: Forged Steel Check Valve
Design Standard: API 602, ASME B16.34
Size Range: 1/4 Inch - 4 Inch (DN8-DN100)
Pressure Range: CLASS 150 LB - 2500 LB(PN10-PN420)
Material: Carbon Steel ASTM A105, ASTM A105N, Stainless Steel ASTM A182 F316, ASTM A182 F316L, Alloy Steel
End Connection: Socket Weld/Threaded(NPT)/Butt Weld/Flanged
Temperature Range: -160 to 595 Degree
Operate: Automatic
Main Features: High strength and durability, High temperature and high pressure resistance, Compact structure, Low maintenance requirements
